the all new chevrolet aveo/sonic
...
TS
morinoz
the all new chevrolet aveo/sonic
Aveo 1.4 (2012-2014)
Aveo sedan 1.4 (2013)

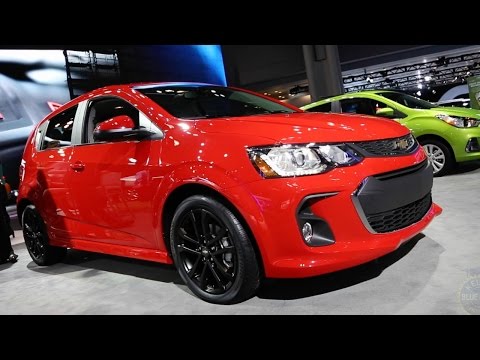

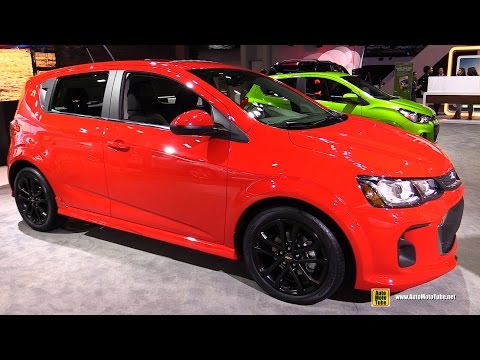

Foto 2014 Aveo facelift di China dan 2017 facelift North America
Mohon jangan memposting hal yg mengarah promosi produk tertentu sesuai tata tertib di http://kask.us/gWKcB krn utk memposting promosi sudah ada tempat khusus di Forum Jual Beli (FJB).
Bagi yg ingin berkomunitas (sharing masalah) silakan bergabung di grup diskusi Facebook Chevrolet Aveo Indonesia di sini dan di sini
8 varian Aveo untuk Indonesia (Mobil CBU Thailand):
- Hatchback 1.4 LS/LT 5-speed manual dan 1.4 LT 6-speed matic tiptronic (discontinued Des 2014)
- Sedan 1.4 LT/LTZ 6-speed matic tiptronic dan 1.4 LT/LTZ 5-speed manual (discontinued Des 2013)
Beda LT dan LTZ:
- LTZ ada 6 speaker (2 tweeter, 2 speaker depan, 2 speaker belakang)
- LT ada 4 speaker (2 tweeter, 2 speaker depan)
- LTZ ada MID menu utk fuel consumption dll, LT tidak ada.
Perbedaan foto eskterior dan interior antara tipe LS dan LT cek di sini
Spek Aveo 1.6 LTZ A/T hatchback showcar di IIMS 2013
Brosur:
2006- 2014 find here
Download manual owner / buku manual kendaraan versi Indonesia
2012 - 2014: find here
Browse service manual di sini atau di sini
Servis manual Chevy Sonic 1.4 turbo dan 1.8
Lead designer:Ondrej Koromhaz
Car platform: GM Gamma II
R&D by GM Korea
Engine 1.4L (LDD) ECOTEC developed by GM Opel spec:
Type: Fam. 0 1,4L Gasoline engine
Combustion System: Spark Ignition
Induction System: Naturally Aspirated
Displacement: 1398cc (85 ci)
Engine Orientation: Transverse
Compression Ratio: 10,5:1
Valve Configuration: Dual Overhead Cam, double continuously variable cam phaser intake and exhaust (DCVCP)
Valves per Cylinder: 4
Valve Timing Variable
Firing Order: 1-3-4-2
Bore x Stroke: 73.4 x 82,6mm
Maximum Engine Speed: 6250 RPM
Fuel System: returnless flow system; 380 kPa / 400 kPa
Fuel Type: 95 RON (91-98)
Biofuel Capable: E10
Engine Mass (kg/lbs) 97
Emissions Controls: Catalytic Converter Euro 5
Applications Horsepower: hp (kw)
Chevrolet Aveo / Sonic 100hp (74kW) @6000 rpm
Applications Torque: lb-ft. (Nm)
Chevrolet Aveo / Sonic 95 lb-ft. (130Nm) @ 4000 rpm
MATERIALS
Block: Iron
Cylinder head: Aluminum
Intake manifold: Composite
Exhaust manifold: Nodular Iron
Crankshaft: Nodular Iron
Camshaft: Hollow Steel
Connecting Rods: Cast Iron
Additional features:
Low-mass hollow-frame cast iron block
Chain-driven cams
Roller-finger camshaft followers
Variable-flow oil pump
Electronically controlled thermostat
Coil on plug ignition
Hollow cast crankshaft
Fully integrated blow-by system
Torsional vibration damper for better NVH
Kurva torsi mesin 1.4 LDD
Tipe Transmisi
Hydra-Matic 6T30 6-Speed (MH9) automatic with tiptronic
F17-5 5-Speed (M26) manual
Drag coefficient (Cw-Wert): 0.357
Perbandingan kapasitas bagasi/cargo volume dg kompetitor
Chevy Aveo (rear seat up/down)[cu. ft.]\t 19.0 / 47.7
Honda Jazz (rear seat up/down)[cu. ft.]\t 16.6 / 52.7
KIA Rio (rear seat up/down)[cu. ft.]\t 15.0 / 49.8
Toyota all new Yaris (rear seat up/down)[cu. ft.]\t 15.6 / no data
Hyundai Grand Avega rear seat up/down)[cu. ft.]\t 21.2 / 47.5
Ford Fiesta (behind second row/behind first row)[cu. ft.]\t 15.4 / 26
sumber: situs resminya di US
Akselerasi 0-100 km/h
Matik: 13.1 detik, top speed 175 km/h
Manual: 12.2 detik, top speed 177 km/h
Informasi BBM
Sesuai buku manual wajib isi: minimal Ron 92 (Pertamax / Shell Super / Total Performance 92 / BP 92)
konsumsi bbm 1.4 manual dalam kota/tol : 10.4-13.2 km/l / 10.6-13.5 km/l (sumber: automobile-catalog)
konsumsi bbm 1.4 matic dalam kota/tol : 8.4-10.8 km/l / 10.7-13.7 km/l (sumber: automobile-catalog)
Info kode cat Aveo
Royal Gray : GQQ
Summit White: GAZ
Black Sapphire: GQR
Oceanic Blue: GVZ
Orange Rock: G6V
Switchblade Silver: GAN
Misty Lake: GCW
Info spek dan daftar oli mesin
Minimal pakai oli bersertifikasi Dexos 1 tingkat kekentalan 5W-30 atau juga bisa pakai Dexos 2 yg harganya lebih mahal, daftar merknya bisa cek Dexos 1 di sinidan Dexos 2 di sini ganti maksimal tiap 7500 km atau tiap 6 sd 8 bulan mana yg lebih dulu tercapai.
Spek oli transmisi:
Utk transmisi manual pakai oli BOT 303 dg spek SAE 70W, API GL-4, atau alternatifnya 75W API GL-4, menurut web resmi diganti tiap 24 bulan / 30rb km. Berikut pengalaman yg sudah ganti dg oli manual GL-4 di sini atau bisa pakai oli resmi transmisi manual GL-4 dr Wuling tipe MTF 75W/90 kemasan biru (liat fotonya di sini) yg bisa dibeli di toko parts atau bengkel resmi Wuling di sini krn bengkel resmi Chevy rata2 hanya sediakan oli GL-5 spt merk Q8 T55
Utk transmisi matik pakai oli Dexron VI utk amannya dikuras tiap 36 bulan / 25rb km krn kalo cuma diganti masih ada sisa oli kotor di gearboxnya.
Utk daftar merk oli Dexron VI klik link di sini atau gbr di bawah butuh sekitar 11 liter gbr di bawah
Spek oli power steering hidrolik:
pakai oli Dexron VI
Spek minyak rem:
pakai oli DOT 4
Info velg ban
PCD: 4x100
Center bore: 56.6
Offset: 39
Mounting: Nut/Lug 12 x 1,50
Ukuran: 195/65 R15 manual, 205/55 R16 matik
Merk ban asli bawaan: Continental ContiPremiumContact™ 2
Info spek aki bawaan ACDelco 50ah part number 19351034 baca di sini
Info ukuran speakers
Front / Rear Speakers : 6.5" ( 6 1/2")
Front Tweeters : 1"
link cara instalasinya
Info tipe lampu bohlam / bulb
Low beam / lampu dekat H7
High beam / lampu jauh H1
Fog light / lampu kabut H27
City light / lampu senja T10
-----
Low Beam: H7, 12V, 55W, Px26d
High Beam: H1, 12V, 55W, P14.5s
Fog Lamp Depan: H27, 12V, 27W, H27/W2
Fog Lamp Belakang & Lampu mundur: P21W, 12V, 21W, BA15s
Lampu Kota/Senja: T10, 12V, 5W, W5W
Lampu Sign depan & belakang PY21W, 12V, 21W, BAU15s
Lampu Sign samping: T10, 12V, 5W, WY5W
Lampu Belakang / Rem: P21/5W, 12V, 21W/5W, BAY15d
Lampu plat nomor belakang: T10, 12V, 5W, W5W
Lampu kabin/plafond: C10W, 12V, 10W, fuse type (SV8.5-8)
Daftar Cek List Pada Saat Serah Terima Mobil Baru
Jadwal perawatan berkala cek di sini
Daftar bengkel resmi, non resmi dan toko parts spesialis GM Chevrolet / Opel klik di sini
Cek status recall Chevy anda di sini atau di sini atau di sini dg mengetik no rangka di STNK
Jika ada keluhan dg mobilnya bisa lapor Customer Care di sini
Tips dll
Penjelasan bahwa logikanya spare parts Aveo 1.4 bisa sharing dg parts Spin 1.2
Solusi keluhan bunyi gerung pada power steering
Penjelasan kekurangan dan kelebihan power steering hydraulic di Aveo
PENTING ! Tips agar power steering hidrolik tetap awet
Tips agar konsumsi BBM bisa lebih irit
Tips cara mengemudi yang bikin irit BBM
Tips agar Mobil Lebih Irit BBM dr vivanews
PENTING ! Tips perawatan fuel pump dan tangki BBM agar tidak tiba2 mogok di jalan
DIY (Do It Yourself) cara memperbaiki Aveo sendiri.
Cara mengaktifkan fitur Follow Me Home
3 perbedaan fitur Aveo model LT hatchback 2012 dan 2014
Cara menampilkan MID konsumsi bensin di Aveo dg alat OBD II harga mulai dr 200ribuan
Cara menonaktifkan fitur auto on/off headlamp baca di sini dan di sini
Cara putar file musik di handphone via bluetooth
PENTING ! Kapan harus kuras oli transmisi matik?
Alternatif merk cabin filter AC dan petunjuk cara penggantiannya.
Yang perlu dipertimbangkan sebelum beli Aveo
PENTING ! Tips cara pemakaian dan perawatan agar AC lebih tahan lama
Penjelasan arti semua gambar di tombol panel AC cek di sini
Jika sudah saatnya ganti karet wiper maka gantilah dg part original dr GM agar kaca terhindar dari baret akibat menggunakan karet wiper merk aftermarket.
PENTING! Alternatif rekondisi perbaikan coil / koil dg biaya terjangkau dan Alternatif rekondisi perbaikan coil / koil dg biaya terjangkau 2 baca juga di seluruh page ini
Alternatif filter oli OEM merk lain
Info penting pemasangan cover engine / pelindung mesin bagian bawah utk melindungi oil carter / bak penampungan oli dr benturan harga 1,1 jt
Gambaran biaya servis rutin per 2016
Penjelasan radio baru mati sendiri setelah 10 menit cabut kunci kontak dan menutup pintu
PENTING ! Mobil yg jarang dipakai wajib panaskan mesin tiap 2 hari sekali selama 10 sd 15 menit diusahakan sekalian diajak jalan dg menyalakan AC keliling kompleks, dan setiap akhir pekan pagi2 diajak jalan di atas gigi 4, juga tetap ganti oli mesin tiap 6 sd 8 bulan sekali meski kilometer belum lewat batasnya agar oli mesin tidak berkerak dan agar aki tidak cepat soak.
Cara mengaktifkan "Logistic Mode" agar aki tidak soak walaupun mobil ditinggal pergi utk jangka yg waktu lama
Arti angka kode error di meter cluster (layar speedometer)
Contoh alat scanner OBDII ELM327 versi 2.1 utk deteksi masalah mobil melalui pesan error yang cocok dg Aveo Sonic dan Tutorial cara pakai dan arti kode errornya bisa cek di sini
PENTING ! Cara memantau indikator coolant temperature mesin utk mencegah overheat pada mesin yg bisa menyebabkan kerusakan parah pd mesin menggunakan scannner OBDII ELM327 versi 2.1
PENTING ! Cara cek kondisi aki dan alternator
PENTING ! Pencegahan mesin overheat dan tindakan setelah overheat
Lokasi nomor mesin Aveo
Arti kode error code 89 dan kipas radiator hidup terus dan cara ganti thermostat sendiri
Euro NCAP crash test result: 5 star rating
pics & video: http://www.euroncap.com/en/results/c...let/aveo/10959
Australian ANCAP crash test result: 5 star rating
pics & video: http://www.ancap.com.au/crashtestrecord?Id=414
Korean KNCAP crash test result: 5 star rating
pics & video: http://goo.gl/7n8L6O
United States IIHS crash test result: Good (exclude Small overlap test)
pics & video: http://www.iihs.org/RATINGS/ratingsb...es.aspx?id=737
interior/eksterior versi Indonesia (model 2012):
http://mobil.sportku.com/berita/news...chevrolet-aveo
Review media lokal:
https://oto.detik.com/ototest-mobil/...new-chevy-aveo
http://otomotif.kompas.com/read/2012...a.All.New.Aveo
https://otomotifnet.gridoto.com/read...enger?page=all
Review media asing:
http://www.topgear.com.ph/drives/rev...t-4-door-sedan
Aveo 1.6 vs VW Polo 1.6 China
Sonic untuk pasar Amerika Utara (USA, Kanada, Meksiko):
- 1.8-liter LUW/LWE/2H0 138 hp (103 kW) @ 4900 148 lb-ft.(200 Nm) @ 1850 with F17-5(M26) five-speed manual or 6T30(MH9) six-speed automatic
- 1.4-liter turbocharged LUV/LUJ 138 hp (103 kW) @ 6300 125 lb.-ft. (170 Nm) @ 3800 with M32-6(MZ4) six-speed manual 6T40(MH8) six-speed automatic
Aveo untuk pasar selain Amerika Utara:
gasoline
- 1.2-literLWD 70hp (51kW) @ 5600 rpm / 85 lb-ft. (115Nm) @ 4000 rpm with F17-5(M26) five-speed manual
- 1.2-liter LDC 85hp (62kW) @ 5600 rpm / 85 lb-ft. (115Nm) @ 4000 rpm with F17-5(M26) five-speed manual
- 1.4 liter LDD 100hp (74kW) @6000 rpm / 95 lb-ft. (130Nm) @ 4000 rpm with F17-5(M26) five-speed manual or 6T30(MH9) six-speed matic
- 1.4-liter turbocharged LUV/LUJ 138 hp (103 kW) @ 6300 125 lb.-ft. (170 Nm) @ 3800 with 6T40(MH8) six-speed automatic
- 1.6 liter LDE 116 hp ( 85 kW ) @ 6000 rpm / 114 lb.-ft. ( 155 Nm ) @ 4000 rpm with F17-5(M26) five-speed manual or 6T30(MH9) six-speed matic
turbo diesel
- 1.3 liter turbo diesel LDV 75 hp ( 55 kW ) @ 4000 rpm / 140 lb.-ft. ( 190 Nm ) @ 1750-2250 FGT with F17-5(M26) five-speed manual
- 1.3 liter turbo diesel LSF 95 hp ( 70 kW ) @ 4000 rpm / 155 lb.-ft. ( 210 Nm ) @ 1750-2500 rpm VGT with F17-5(M26) five-speed manual
General data versi global:
hatchback 1.4 manual:
http://www.automobile-catalog.com/ca...hatchback.html
hatchback 1.4 matic:
http://www.automobile-catalog.com/ca...automatic.html
sedan 1.4 manual:
http://www.automobile-catalog.com/ca..._lt_sedan.html
sedan 1.4 matic:
http://www.automobile-catalog.com/ca...automatic.html
--------------
Jenis BBM agar mesin lebih awet, bertenaga, tidak ngelitik, irit BBM:
Utk mesin bensin kompresi 10 ke atas secara teknis harusnya pakai BBM Ron 92 (Shell /Pertamax/Total/ Akra 92)
Awas! Pemakaian aditif dalam jangka waktu yang panjang ternyata tidak aman untuk mesin mobil Anda. Karena pada kenyataannya menggunakan aditif akan menimbulkan kerak yang menumpuk pada sistem pelumas mesin.
sumber: detik
Kiat Memilih Bahan Bakar yang Tepat
Mengenal Hubungan Kompresi dan Nilai Oktan
Perbandingan Kompresi Vs Oktan Bensin
Aveo sedan 1.4 (2013)
Foto 2014 Aveo facelift di China dan 2017 facelift North America
Mohon jangan memposting hal yg mengarah promosi produk tertentu sesuai tata tertib di http://kask.us/gWKcB krn utk memposting promosi sudah ada tempat khusus di Forum Jual Beli (FJB).
Bagi yg ingin berkomunitas (sharing masalah) silakan bergabung di grup diskusi Facebook Chevrolet Aveo Indonesia di sini dan di sini
8 varian Aveo untuk Indonesia (Mobil CBU Thailand):
- Hatchback 1.4 LS/LT 5-speed manual dan 1.4 LT 6-speed matic tiptronic (discontinued Des 2014)
- Sedan 1.4 LT/LTZ 6-speed matic tiptronic dan 1.4 LT/LTZ 5-speed manual (discontinued Des 2013)
Beda LT dan LTZ:
- LTZ ada 6 speaker (2 tweeter, 2 speaker depan, 2 speaker belakang)
- LT ada 4 speaker (2 tweeter, 2 speaker depan)
- LTZ ada MID menu utk fuel consumption dll, LT tidak ada.
Perbedaan foto eskterior dan interior antara tipe LS dan LT cek di sini
Spek Aveo 1.6 LTZ A/T hatchback showcar di IIMS 2013
Brosur:
2006- 2014 find here
Download manual owner / buku manual kendaraan versi Indonesia
2012 - 2014: find here
Browse service manual di sini atau di sini
Servis manual Chevy Sonic 1.4 turbo dan 1.8
Spoiler for Video masalah umum dan perawatan :
Lead designer:Ondrej Koromhaz
Car platform: GM Gamma II
R&D by GM Korea
Engine 1.4L (LDD) ECOTEC developed by GM Opel spec:
Type: Fam. 0 1,4L Gasoline engine
Combustion System: Spark Ignition
Induction System: Naturally Aspirated
Displacement: 1398cc (85 ci)
Engine Orientation: Transverse
Compression Ratio: 10,5:1
Valve Configuration: Dual Overhead Cam, double continuously variable cam phaser intake and exhaust (DCVCP)
Valves per Cylinder: 4
Valve Timing Variable
Firing Order: 1-3-4-2
Bore x Stroke: 73.4 x 82,6mm
Maximum Engine Speed: 6250 RPM
Fuel System: returnless flow system; 380 kPa / 400 kPa
Fuel Type: 95 RON (91-98)
Biofuel Capable: E10
Engine Mass (kg/lbs) 97
Emissions Controls: Catalytic Converter Euro 5
Applications Horsepower: hp (kw)
Chevrolet Aveo / Sonic 100hp (74kW) @6000 rpm
Applications Torque: lb-ft. (Nm)
Chevrolet Aveo / Sonic 95 lb-ft. (130Nm) @ 4000 rpm
MATERIALS
Block: Iron
Cylinder head: Aluminum
Intake manifold: Composite
Exhaust manifold: Nodular Iron
Crankshaft: Nodular Iron
Camshaft: Hollow Steel
Connecting Rods: Cast Iron
Additional features:
Low-mass hollow-frame cast iron block
Chain-driven cams
Roller-finger camshaft followers
Variable-flow oil pump
Electronically controlled thermostat
Coil on plug ignition
Hollow cast crankshaft
Fully integrated blow-by system
Torsional vibration damper for better NVH
Kurva torsi mesin 1.4 LDD
Tipe Transmisi
Hydra-Matic 6T30 6-Speed (MH9) automatic with tiptronic
F17-5 5-Speed (M26) manual
Drag coefficient (Cw-Wert): 0.357
Spoiler for tabel perbandingan spesifikasi Aveo hatchback versi Indonesia dg kompetitor:
Perbandingan kapasitas bagasi/cargo volume dg kompetitor
Chevy Aveo (rear seat up/down)[cu. ft.]\t 19.0 / 47.7
Honda Jazz (rear seat up/down)[cu. ft.]\t 16.6 / 52.7
KIA Rio (rear seat up/down)[cu. ft.]\t 15.0 / 49.8
Toyota all new Yaris (rear seat up/down)[cu. ft.]\t 15.6 / no data
Hyundai Grand Avega rear seat up/down)[cu. ft.]\t 21.2 / 47.5
Ford Fiesta (behind second row/behind first row)[cu. ft.]\t 15.4 / 26
sumber: situs resminya di US
Akselerasi 0-100 km/h
Matik: 13.1 detik, top speed 175 km/h
Manual: 12.2 detik, top speed 177 km/h
Informasi BBM
Sesuai buku manual wajib isi: minimal Ron 92 (Pertamax / Shell Super / Total Performance 92 / BP 92)
konsumsi bbm 1.4 manual dalam kota/tol : 10.4-13.2 km/l / 10.6-13.5 km/l (sumber: automobile-catalog)
konsumsi bbm 1.4 matic dalam kota/tol : 8.4-10.8 km/l / 10.7-13.7 km/l (sumber: automobile-catalog)
Info kode cat Aveo
Royal Gray : GQQ
Summit White: GAZ
Black Sapphire: GQR
Oceanic Blue: GVZ
Orange Rock: G6V
Switchblade Silver: GAN
Misty Lake: GCW
Info spek dan daftar oli mesin
Minimal pakai oli bersertifikasi Dexos 1 tingkat kekentalan 5W-30 atau juga bisa pakai Dexos 2 yg harganya lebih mahal, daftar merknya bisa cek Dexos 1 di sinidan Dexos 2 di sini ganti maksimal tiap 7500 km atau tiap 6 sd 8 bulan mana yg lebih dulu tercapai.
Spek oli transmisi:
Utk transmisi manual pakai oli BOT 303 dg spek SAE 70W, API GL-4, atau alternatifnya 75W API GL-4, menurut web resmi diganti tiap 24 bulan / 30rb km. Berikut pengalaman yg sudah ganti dg oli manual GL-4 di sini atau bisa pakai oli resmi transmisi manual GL-4 dr Wuling tipe MTF 75W/90 kemasan biru (liat fotonya di sini) yg bisa dibeli di toko parts atau bengkel resmi Wuling di sini krn bengkel resmi Chevy rata2 hanya sediakan oli GL-5 spt merk Q8 T55
Utk transmisi matik pakai oli Dexron VI utk amannya dikuras tiap 36 bulan / 25rb km krn kalo cuma diganti masih ada sisa oli kotor di gearboxnya.
Utk daftar merk oli Dexron VI klik link di sini atau gbr di bawah butuh sekitar 11 liter gbr di bawah
Spek oli power steering hidrolik:
pakai oli Dexron VI
Spek minyak rem:
pakai oli DOT 4
Info velg ban
PCD: 4x100
Center bore: 56.6
Offset: 39
Mounting: Nut/Lug 12 x 1,50
Ukuran: 195/65 R15 manual, 205/55 R16 matik
Merk ban asli bawaan: Continental ContiPremiumContact™ 2
Info spek aki bawaan ACDelco 50ah part number 19351034 baca di sini
Info ukuran speakers
Front / Rear Speakers : 6.5" ( 6 1/2")
Front Tweeters : 1"
link cara instalasinya
Info tipe lampu bohlam / bulb
Low beam / lampu dekat H7
High beam / lampu jauh H1
Fog light / lampu kabut H27
City light / lampu senja T10
-----
Low Beam: H7, 12V, 55W, Px26d
High Beam: H1, 12V, 55W, P14.5s
Fog Lamp Depan: H27, 12V, 27W, H27/W2
Fog Lamp Belakang & Lampu mundur: P21W, 12V, 21W, BA15s
Lampu Kota/Senja: T10, 12V, 5W, W5W
Lampu Sign depan & belakang PY21W, 12V, 21W, BAU15s
Lampu Sign samping: T10, 12V, 5W, WY5W
Lampu Belakang / Rem: P21/5W, 12V, 21W/5W, BAY15d
Lampu plat nomor belakang: T10, 12V, 5W, W5W
Lampu kabin/plafond: C10W, 12V, 10W, fuse type (SV8.5-8)
Daftar Cek List Pada Saat Serah Terima Mobil Baru
Jadwal perawatan berkala cek di sini
Daftar bengkel resmi, non resmi dan toko parts spesialis GM Chevrolet / Opel klik di sini
Cek status recall Chevy anda di sini atau di sini atau di sini dg mengetik no rangka di STNK
Jika ada keluhan dg mobilnya bisa lapor Customer Care di sini
Tips dll
Penjelasan bahwa logikanya spare parts Aveo 1.4 bisa sharing dg parts Spin 1.2
Solusi keluhan bunyi gerung pada power steering
Penjelasan kekurangan dan kelebihan power steering hydraulic di Aveo
PENTING ! Tips agar power steering hidrolik tetap awet
Tips agar konsumsi BBM bisa lebih irit
Tips cara mengemudi yang bikin irit BBM
Tips agar Mobil Lebih Irit BBM dr vivanews
PENTING ! Tips perawatan fuel pump dan tangki BBM agar tidak tiba2 mogok di jalan
DIY (Do It Yourself) cara memperbaiki Aveo sendiri.
Cara mengaktifkan fitur Follow Me Home
3 perbedaan fitur Aveo model LT hatchback 2012 dan 2014
Cara menampilkan MID konsumsi bensin di Aveo dg alat OBD II harga mulai dr 200ribuan
Cara menonaktifkan fitur auto on/off headlamp baca di sini dan di sini
Cara putar file musik di handphone via bluetooth
PENTING ! Kapan harus kuras oli transmisi matik?
Alternatif merk cabin filter AC dan petunjuk cara penggantiannya.
Yang perlu dipertimbangkan sebelum beli Aveo
PENTING ! Tips cara pemakaian dan perawatan agar AC lebih tahan lama
Penjelasan arti semua gambar di tombol panel AC cek di sini
Jika sudah saatnya ganti karet wiper maka gantilah dg part original dr GM agar kaca terhindar dari baret akibat menggunakan karet wiper merk aftermarket.
PENTING! Alternatif rekondisi perbaikan coil / koil dg biaya terjangkau dan Alternatif rekondisi perbaikan coil / koil dg biaya terjangkau 2 baca juga di seluruh page ini
Alternatif filter oli OEM merk lain
Info penting pemasangan cover engine / pelindung mesin bagian bawah utk melindungi oil carter / bak penampungan oli dr benturan harga 1,1 jt
Gambaran biaya servis rutin per 2016
Penjelasan radio baru mati sendiri setelah 10 menit cabut kunci kontak dan menutup pintu
PENTING ! Mobil yg jarang dipakai wajib panaskan mesin tiap 2 hari sekali selama 10 sd 15 menit diusahakan sekalian diajak jalan dg menyalakan AC keliling kompleks, dan setiap akhir pekan pagi2 diajak jalan di atas gigi 4, juga tetap ganti oli mesin tiap 6 sd 8 bulan sekali meski kilometer belum lewat batasnya agar oli mesin tidak berkerak dan agar aki tidak cepat soak.
Cara mengaktifkan "Logistic Mode" agar aki tidak soak walaupun mobil ditinggal pergi utk jangka yg waktu lama
Arti angka kode error di meter cluster (layar speedometer)
Contoh alat scanner OBDII ELM327 versi 2.1 utk deteksi masalah mobil melalui pesan error yang cocok dg Aveo Sonic dan Tutorial cara pakai dan arti kode errornya bisa cek di sini
PENTING ! Cara memantau indikator coolant temperature mesin utk mencegah overheat pada mesin yg bisa menyebabkan kerusakan parah pd mesin menggunakan scannner OBDII ELM327 versi 2.1
PENTING ! Cara cek kondisi aki dan alternator
PENTING ! Pencegahan mesin overheat dan tindakan setelah overheat
Lokasi nomor mesin Aveo
Arti kode error code 89 dan kipas radiator hidup terus dan cara ganti thermostat sendiri
Euro NCAP crash test result: 5 star rating
pics & video: http://www.euroncap.com/en/results/c...let/aveo/10959
Australian ANCAP crash test result: 5 star rating
pics & video: http://www.ancap.com.au/crashtestrecord?Id=414
Korean KNCAP crash test result: 5 star rating
pics & video: http://goo.gl/7n8L6O
United States IIHS crash test result: Good (exclude Small overlap test)
pics & video: http://www.iihs.org/RATINGS/ratingsb...es.aspx?id=737
interior/eksterior versi Indonesia (model 2012):
http://mobil.sportku.com/berita/news...chevrolet-aveo
Review media lokal:
https://oto.detik.com/ototest-mobil/...new-chevy-aveo
http://otomotif.kompas.com/read/2012...a.All.New.Aveo
https://otomotifnet.gridoto.com/read...enger?page=all
Review media asing:
http://www.topgear.com.ph/drives/rev...t-4-door-sedan
Aveo 1.6 vs VW Polo 1.6 China
Sonic untuk pasar Amerika Utara (USA, Kanada, Meksiko):
- 1.8-liter LUW/LWE/2H0 138 hp (103 kW) @ 4900 148 lb-ft.(200 Nm) @ 1850 with F17-5(M26) five-speed manual or 6T30(MH9) six-speed automatic
- 1.4-liter turbocharged LUV/LUJ 138 hp (103 kW) @ 6300 125 lb.-ft. (170 Nm) @ 3800 with M32-6(MZ4) six-speed manual 6T40(MH8) six-speed automatic
Aveo untuk pasar selain Amerika Utara:
gasoline
- 1.2-literLWD 70hp (51kW) @ 5600 rpm / 85 lb-ft. (115Nm) @ 4000 rpm with F17-5(M26) five-speed manual
- 1.2-liter LDC 85hp (62kW) @ 5600 rpm / 85 lb-ft. (115Nm) @ 4000 rpm with F17-5(M26) five-speed manual
- 1.4 liter LDD 100hp (74kW) @6000 rpm / 95 lb-ft. (130Nm) @ 4000 rpm with F17-5(M26) five-speed manual or 6T30(MH9) six-speed matic
- 1.4-liter turbocharged LUV/LUJ 138 hp (103 kW) @ 6300 125 lb.-ft. (170 Nm) @ 3800 with 6T40(MH8) six-speed automatic
- 1.6 liter LDE 116 hp ( 85 kW ) @ 6000 rpm / 114 lb.-ft. ( 155 Nm ) @ 4000 rpm with F17-5(M26) five-speed manual or 6T30(MH9) six-speed matic
turbo diesel
- 1.3 liter turbo diesel LDV 75 hp ( 55 kW ) @ 4000 rpm / 140 lb.-ft. ( 190 Nm ) @ 1750-2250 FGT with F17-5(M26) five-speed manual
- 1.3 liter turbo diesel LSF 95 hp ( 70 kW ) @ 4000 rpm / 155 lb.-ft. ( 210 Nm ) @ 1750-2500 rpm VGT with F17-5(M26) five-speed manual
General data versi global:
hatchback 1.4 manual:
http://www.automobile-catalog.com/ca...hatchback.html
hatchback 1.4 matic:
http://www.automobile-catalog.com/ca...automatic.html
sedan 1.4 manual:
http://www.automobile-catalog.com/ca..._lt_sedan.html
sedan 1.4 matic:
http://www.automobile-catalog.com/ca...automatic.html
--------------
Jenis BBM agar mesin lebih awet, bertenaga, tidak ngelitik, irit BBM:
Utk mesin bensin kompresi 10 ke atas secara teknis harusnya pakai BBM Ron 92 (Shell /Pertamax/Total/ Akra 92)
Awas! Pemakaian aditif dalam jangka waktu yang panjang ternyata tidak aman untuk mesin mobil Anda. Karena pada kenyataannya menggunakan aditif akan menimbulkan kerak yang menumpuk pada sistem pelumas mesin.
sumber: detik
Kiat Memilih Bahan Bakar yang Tepat
Mengenal Hubungan Kompresi dan Nilai Oktan
Perbandingan Kompresi Vs Oktan Bensin
yogautomo1984 dan 8 lainnya memberi reputasi
9
977.1K
6K
Komentar yang asik ya
Mari bergabung, dapatkan informasi dan teman baru!
Kendaraan Roda 4
25.1KThread•15.9KAnggota
Tampilkan semua post
TS
morinoz
#3568
Chevrolet Introduces 2017 Sonic
Fresh look, segment-first Apple CarPlay/Android Auto compatibility lead changes
![the all new chevrolet aveo/sonic]()
2016-03-18
NEW YORK – Chevrolet today introduced the 2017 Sonic – a more expressive, sporty take on the brand’s fun-to-drive small car. It offers big technologies such as a new MyLink system with segment-exclusive Apple CarPlay and Android Auto compatibility, and a fresh exterior with new LED signature lighting.
The updated styling complements new comfort and convenience features such as an available heated steering wheel and a standard 7-inch-diagonal color touchscreen for the new MyLink system. Rear Park Assist is also new, adding to one of the most comprehensive safety packages in the segment.
“The new styling and features of the 2017 Sonic reinforce its position as a fun, efficient small car with leading technology – all at an affordable price,” said Steve Majoros, director of marketing, Chevrolet Cars and Crossovers. “This is an important segment for Chevrolet, as we really have an opportunity to introduce ourselves to new buyers and show them what we’re all about.”
Like the new Trax, Sonic brings new, younger customers to the brand, with more than 20 percent of them younger than 35 – and nearly 30 percent trading in non-GM vehicles. It is also Chevrolet’s top vehicle for first-time new buyers.
The 2017 Sonic goes on sale this fall, offered in LS, LT and Premier trims on sedan models. The hatchback returns exclusively in RS guise, offered in LT and Premier trims. An RS package is also available on the sedan.
Refined design
Sonic’s athletic exterior has an entirely new, expressive look echoing the global Chevrolet cues seen on vehicles such as the Cruze, Bolt EV and 2017 Trax.
It is a richer, more detailed design, with the front end featuring a new hood, new front fascia and new lighting elements. Projector-beam headlamps are standard, along with available LED daytime running lamps. Likewise, the rear fascia is new.
“With its trademark wheels-at-the-corners stance, the dramatic changes to the Sonic’s design give it and even sportier stance and attitude,” said Justin Thompson, exterior design manager.
There are also new 15-, 16- and 17-inch wheel designs and four new exterior colors offered in 2017: Orange Burst Metallic, Brimstone, Cajun Red Tintcoat and Arctic Blue Metallic (late availability).
Interior and technology enhancements
Sonic’s thoughtful interior retains its focus on delivering comfort, convenience and technology. A new, detailed gauge cluster incorporating an analog speedometer adds a higher degree of refinement to the cabin, complementing addition new comfort and convenience features.
For 2017, Sonic becomes the first in its segment to offer a power driver’s seat. Additional new features include:
Keyless Open and Start
Available heated cloth seats with new heated steering wheel
RS trim includes RS-logo floor mats, piano black décor, RS-badged flat-bottom steering wheel – with new, red cloth seating available.
Also new is a 7-inch-diagonal infotainment system designed to support the latest connectivity technologies, including Apple CarPlay and Android Auto compatibility and 4G LTE with Wi-Fi hotspot. With the available 4G LTE connection, Sonic provides a Wi-Fi hotspot that allows passengers to connect up to seven compatible devices such as smartphones, laptops and tablets, to high-speed wireless Internet.
Apple CarPlay and Android Auto compatibility is subject to their terms, privacy statements and data plan rates, as well as a compatible smartphone.
Safety first
Sonic offers safety features designed to alert drivers to potential crash situations. Forward Collision Alert and Lane Departure Warning are available active safety features. Sonic also offers 10 standard air bags, Stabilitrak electronic stability control and an antilock braking system to help provide peace of mind. Rear Park Assist is new for 2017 and a rearview camera is now standard on all models.
Turbocharged performance
The Sonic’s standard Ecotec 1.8L engine is estimated to deliver similar fuel economy numbers for the 2017 model year, however official EPA estimates are not yet available. Sonic’s fun-driving spirit returns with an available Ecotec 1.4L turbo engine, backed by a six-speed automatic or transmission. Rated at 138 horsepower (102 kW).
http://media.chevrolet.com/media/us/...318-sonic.html
Live pics:
http://www.autoblog.com/photos/2017-...new-york-2016/
http://www.carmagazine.co.uk/car-new...rk-motor-show/
http://www.beyond.ca/chevy-sonic-get...ted/56113.html
Fresh look, segment-first Apple CarPlay/Android Auto compatibility lead changes
2016-03-18
NEW YORK – Chevrolet today introduced the 2017 Sonic – a more expressive, sporty take on the brand’s fun-to-drive small car. It offers big technologies such as a new MyLink system with segment-exclusive Apple CarPlay and Android Auto compatibility, and a fresh exterior with new LED signature lighting.
The updated styling complements new comfort and convenience features such as an available heated steering wheel and a standard 7-inch-diagonal color touchscreen for the new MyLink system. Rear Park Assist is also new, adding to one of the most comprehensive safety packages in the segment.
“The new styling and features of the 2017 Sonic reinforce its position as a fun, efficient small car with leading technology – all at an affordable price,” said Steve Majoros, director of marketing, Chevrolet Cars and Crossovers. “This is an important segment for Chevrolet, as we really have an opportunity to introduce ourselves to new buyers and show them what we’re all about.”
Like the new Trax, Sonic brings new, younger customers to the brand, with more than 20 percent of them younger than 35 – and nearly 30 percent trading in non-GM vehicles. It is also Chevrolet’s top vehicle for first-time new buyers.
The 2017 Sonic goes on sale this fall, offered in LS, LT and Premier trims on sedan models. The hatchback returns exclusively in RS guise, offered in LT and Premier trims. An RS package is also available on the sedan.
Refined design
Sonic’s athletic exterior has an entirely new, expressive look echoing the global Chevrolet cues seen on vehicles such as the Cruze, Bolt EV and 2017 Trax.
It is a richer, more detailed design, with the front end featuring a new hood, new front fascia and new lighting elements. Projector-beam headlamps are standard, along with available LED daytime running lamps. Likewise, the rear fascia is new.
“With its trademark wheels-at-the-corners stance, the dramatic changes to the Sonic’s design give it and even sportier stance and attitude,” said Justin Thompson, exterior design manager.
There are also new 15-, 16- and 17-inch wheel designs and four new exterior colors offered in 2017: Orange Burst Metallic, Brimstone, Cajun Red Tintcoat and Arctic Blue Metallic (late availability).
Interior and technology enhancements
Sonic’s thoughtful interior retains its focus on delivering comfort, convenience and technology. A new, detailed gauge cluster incorporating an analog speedometer adds a higher degree of refinement to the cabin, complementing addition new comfort and convenience features.
For 2017, Sonic becomes the first in its segment to offer a power driver’s seat. Additional new features include:
Keyless Open and Start
Available heated cloth seats with new heated steering wheel
RS trim includes RS-logo floor mats, piano black décor, RS-badged flat-bottom steering wheel – with new, red cloth seating available.
Also new is a 7-inch-diagonal infotainment system designed to support the latest connectivity technologies, including Apple CarPlay and Android Auto compatibility and 4G LTE with Wi-Fi hotspot. With the available 4G LTE connection, Sonic provides a Wi-Fi hotspot that allows passengers to connect up to seven compatible devices such as smartphones, laptops and tablets, to high-speed wireless Internet.
Apple CarPlay and Android Auto compatibility is subject to their terms, privacy statements and data plan rates, as well as a compatible smartphone.
Safety first
Sonic offers safety features designed to alert drivers to potential crash situations. Forward Collision Alert and Lane Departure Warning are available active safety features. Sonic also offers 10 standard air bags, Stabilitrak electronic stability control and an antilock braking system to help provide peace of mind. Rear Park Assist is new for 2017 and a rearview camera is now standard on all models.
Turbocharged performance
The Sonic’s standard Ecotec 1.8L engine is estimated to deliver similar fuel economy numbers for the 2017 model year, however official EPA estimates are not yet available. Sonic’s fun-driving spirit returns with an available Ecotec 1.4L turbo engine, backed by a six-speed automatic or transmission. Rated at 138 horsepower (102 kW).
http://media.chevrolet.com/media/us/...318-sonic.html
Live pics:
http://www.autoblog.com/photos/2017-...new-york-2016/
http://www.carmagazine.co.uk/car-new...rk-motor-show/
http://www.beyond.ca/chevy-sonic-get...ted/56113.html
Spoiler for Videonya:
Diubah oleh morinoz 27-03-2016 09:22
0
