.: WELCOME TO OFFICIAL LOUNGE :.
.: AXIOO PICOPAD 9 (GIE) & PICOPAD 9+ (GIM):.

Ayo Buat Agan2, Om dan Tante Silahkan Gabung dan Share
Axioo Picopad 9 GIE & Picopad 9+ GIM nya dimari...

PENAMPAKAN DAN SPESIFIKASI PICOPAD 9 GIE

[Official Lounge] Axioo Picopad 9 (GIE) dan Picopad 9+ (GIM)

Spesifikasi Picopad 9 GIE

Quote:

ProcessorALLWINNER TECH A13 Cortex A8 1.2 Hz 2X Mali-400 2D/3D
Operating System Android 4.04 (Ice Cream Sandwich) - di box tertulis 4.0.3, aslinya 4.0.4
Storage Internal: 8GB (6GB user-available) Slot: MicroSD up to 32GB
Memory Internal: 512MB DDR3
Display 9 inch TFT LCD(16:9) Multi Touch Pad 800 x 480 pixels
Dimension 238mm (L) x 149mm (W) x 10mm (H)
Weight 536g with battery pack
Radio Band No
Connectivity Data: No WLAN: Wi-Fi 802.11 b/g/n Bluetooth: No
GPS No
Phone Service None
Messaging Email, Push Email, IM
Browser HTML support Adobe Flash 11.1 support
Audio/Sound microphone, Loudspeaker, 3.5mm audio jack for stereo headset interface
Video Playback AVI(H.264, DIVX, XVID) rm, rmvb, MKV, WMV, MOV, MP4(H.264, MPEG, DIVX, XVID),3GP, MPEG, MPG, FLV. HD 1080P max.
Camera Front 0.3M Pixel Camera
Sensor MMA 3-axiss Accelerometer Sensor
Interface Ports miniUSB v2.0(OTG)
Battery Capacity: 3.7V/5200mAh Standby time: 24 hours Work time: 6 hours
Available Color black brown

PENAMPAKAN DAN SPESIFIKASI PICOPAD 9+ GIM

Spesifikasi Picopad 9+ GIM

Quote:

ProcessorBoxchip A10 Cortex A8 - 1.2 GHz
Operating System Android 4.04 (Ice Cream Sandwich) - di box tertulis 4.0.3, aslinya 4.0.4
Storage Internal: 8GB (6GB user-available)
Slot MicroSD up to 32GB
Memory Internal: 1 GB DDRII
Display 9,7'' IPS Capacitive Multi Touch Pad 1024 x 768 pixels
Dimension 242mm (L) x 189mm (W) x 10mm (H)
Weight 510g with battery pack
Radio Band No
Connectivity Data: No WLAN: Wi-Fi 802.11 b/g/n
Bluetooth No
GPS No
Phone Service None
Messaging Email, Push Email, IM
Browser HTML support Adobe Flash
Audio/Sound microphone, Loudspeaker, 3.5mm audio jack for stereo headset interface
Video Playback HDMI Ver 1.4 Output, AVI(H.264, DIVX, XVID, rm, rmvb, MKV, WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV. HD 1080P max.
Camera Back: 2.0MPx Front: 0.3MPx
Sensor G-Sensor
Interface Ports MicroUSB v2.0, miniHDMI port
Battery Capacity Built in Lithium Polymer/3500mAh/7.4v Standby time: 48 Hours Work time: 360 Minute
Available Color Black

Official WebSites

Quote:

[URL=" [url]http://www.axiooworld.com/region/index.php[/url] "]Official Axioo Websites[/URL]

Service Center Axioo

Quote:

[URL="http://www.axiooworld.com/ww/index.php?act=buy&goto=buy2&country=axiooid "]Service Center Axioo[/URL]

Social Media

Quote:

[URL="https://www.facebook.com/groups/142490862479056/ "]Axioo Picopad Facebook Group[/URL]

Registration Online

thanks to Agan AxiooPicoPad7from [Official Lounge] Axioo Picopad 7

Quote:

Jangan Lupa Utk Register Axioo PicoPad GIE n GIM Via Online Ya Gan..

Spoiler for Yang Harus Diisi:

Spoiler for Kalo Berhasil:

Warranty Online

thanks to Agan AxiooPicoPad7from [Official Lounge] Axioo Picopad 7

Quote:

Cek Garansi Via Online..

Spoiler for Yang Harus Diisi:

Spoiler for Kalo Berhasil:

Cek Disini Ya Gan.. => http://register.axiooworld.com/regis...ion_check/main

Diubah oleh PicoPad9 06-11-2012 10:06

111.4K

Kutip

733

Balasan

Komentar yang asik ya

Mari bergabung, dapatkan informasi dan teman baru!

Android

29.6KThread•17.9KAnggota

Tampilkan semua post

MasWawanCore

25-02-2013 11:22

#462

TUTORIAL, Install, Root, Edit DPI pada LY-F9 JellyBean 4.1.1 utk PP9 GIE

Buat PP9 GIE, ane sudah bisa nemuin cara termudah nih buat Root dan Edit DPI ROM JellyBean 4.1.1 dari LY-F9... sudah ane pake dan coba beberapa hari... Overall sangat stabil, Graphic lebih smooth dan halus, belum nemuin issues dan ane merasa lebih nyaman daripada waktu pake ROM 4.0.4

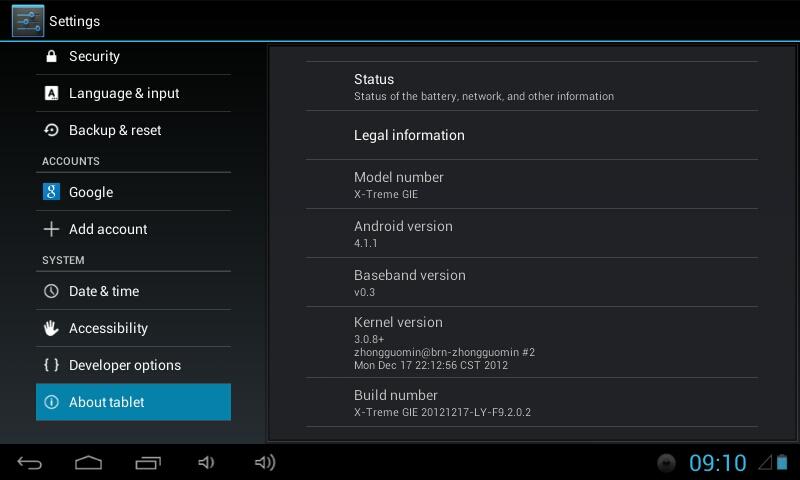

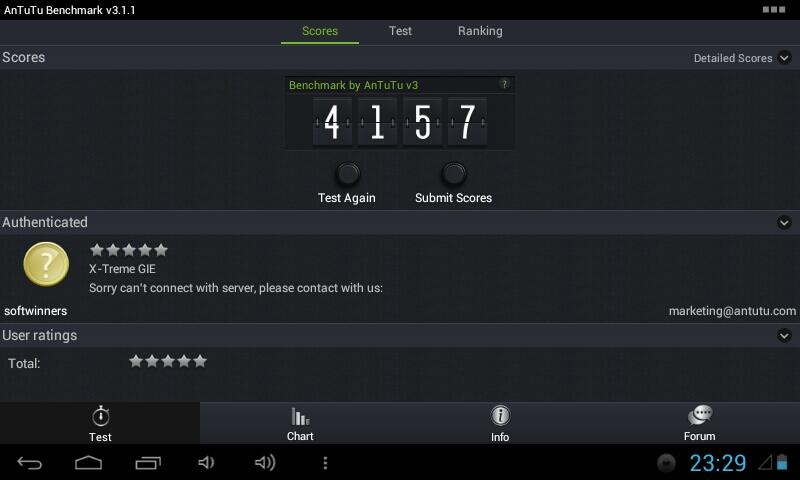

Berikut penampakannya gan...

Spoiler for JellyBean:

Ane Ganti Juga Namanya jadi X-Treme GIEbiar Lebih Local.. Hehehe emoticon-Ngakak

Cara Install :
Download ROMnya Klik Disini pilih kotak yg warna putih
Lalu Install Via Livesuit aja, lihat caranya di pejwan .. emoticon-I Love Indonesia (S)

Cara Root :
Cara Rootnya pake Uberizer 1,4, donlot Klik Disini
Password=TechKnow

Install Uberizer 1.4..
Centang USB debugging pada PP9 GIE...
colokin ke PC dan biarin...
Jalankan Uberizer, sampai terdeteksi > sampai ada perintah press anykey to continue... klik enter atau sembarang tombol...
masuk di menu Uberizer pilih option yang "c" root menu lalu pilih no "10" android 4.0 ICs HTC (alpha) enter dan tunggu proses selesai (akan reboot beberapa kali... Selamat 4.1.1 pasti udah Root...)

Untuk Edit DPI dan Tweak Build.prop :
masuk di tampilan 4.1.1 Icon akan besar2, harus diedit di Build.Prop nya..
tidak bisa edit DPI nya pake Root Explorer atau DPI changer... harus pake Uberizer lagi...
Caranya...

Pake root explorer copy dulu file build.prop di system lalu Backup/simpan di Kompi agan...
jalankan Uberizer sama dgn cara Root diatas sampai masuk menu lagi...
Pilih Option "b" Build menu lalu pilih no "2" edit build.prop and push it back.. Enter..
Akan ada task kosong kyk notepad... sebetulnya cuman perlu ditambahin command line ro.sf.lcd_density=120, tp disini sekalian ane sertakan sedikit Tweak biar kinerja JellyBean lebih maksimal...Silahkan Langsung Copas aja Semua Line Command Build.prop berikut di task kyk notepad tersebut..

Spoiler for build.prop:

# begin build properties
# autogenerated by buildinfo.sh
ro.build.id=JRO03C
ro.build.display.id=X-Treme GIE 20121217-LY-F9.2.0.2
ro.build.version.incremental=20121217
ro.build.version.sdk=16
ro.build.version.codename=REL
ro.build.version.release=4.1.1
ro.build.date=2012Äê 12ÔÂ 17ÈÕ ÐÇÆÚÒ» 22:15:20 CST
ro.build.date.utc=1355753720
ro.build.type=eng
ro.build.user=zhongguomin
ro.build.host=brn-zhongguomin
ro.build.tags=test-keys
ro.product.model=X-Treme GIE
ro.product.brand=softwinners
ro.product.name=nuclear_f900
ro.product.device=nuclear-f900
ro.product.board=nuclear
ro.product.cpu.abi=armeabi-v7a
ro.product.cpu.abi2=armeabi
ro.product.manufacturer=unknown
ro.product.locale.language=en
ro.product.locale.region=US
ro.wifi.channels=
ro.board.platform=exDroid
# ro.build.product is obsolete; use ro.product.device
ro.build.product=nuclear-f900
# Do not try to parse ro.build.description or .fingerprint
ro.build.description=F900_V2.0.2_20121217_a174_bbd4efc
ro.build.fingerprint=softwinners/nuclear_f900/nuclear-f900:4.1.1/JRO03C/20121217:eng/test-keys
ro.build.characteristics=tablet
# end build properties
# broncho tag,please don't modify
ro.broncho.id=F900_V2.0.2_20121217_a174_bbd4efc

#
# ADDITIONAL_BUILD_PROPERTIES
#
ro.com.android.dateformat=MM-dd-yyyy
ro.config.ringtone=Ring_Synth_04.ogg
ro.config.notification_sound=pixiedust.ogg
ro.carrier=unknown
ro.config.alarm_alert=Alarm_Classic.ogg
dalvik.vm.heapsize=64m
ro.kernel.android.checkjni=0
persist.sys.timezone=Asia/Shanghai
persist.sys.language=en
persist.sys.country=US
wifi.interface=wlan0
wifi.supplicant_scan_interval=15
debug.egl.hw=1
ro.opengles.version=131072
rild.libargs=-d/dev/ttyUSB2
rild.libpath=/system/lib/libsoftwinner-ril.so
keyguard.no_require_sim=true
persist.sys.strictmode.visual=0
persist.sys.strictmode.disable=1
hwui.render_dirty_regions=false
persist.sampling_profiler=1
persist.sys.usb.config=mass_storage,adb
ro.property.tabletUI=true
ro.udisk.lable=F9S
ro.product.firmware=v0.3
ro.broncho.GPS=n
net.bt.name=Android
dalvik.vm.stack-trace-file=/data/anr/traces.txt
ro.sf.lcd_density=120
#Tweaks by Areo#
ro.ril.hep=1
ro.ril.enable.dtm=1
ro.ril.hsdpa.category=10
ro.ril.enable.a53=1
ro.ril.enable.3g.prefix=1
ro.ril.htcmaskw1.bitmask=4294967295
ro.ril.htcmaskw1=14449
ro.ril.hsupa.category=5
net.tcp.buffersize.default=4096,87380,256960,4096,16384,256960
net.tcp.buffersize.wifi=4096,87380,256960,4096,16384,256960
net.tcp.buffersize.umts=4096,87380,256960,4096,16384,256960
net.tcp.buffersize.gprs=4096,87380,256960,4096,16384,256960
net.tcp.buffersize.edge=4096,87380,256960,4096,16384,256960
ro.kernel.android.checkjni=0
debug.performance.tuning=1
video.accelerate.hw=1
media.stagefright.enable-player=True
media.stagefright.enable-meta=True
media.stagefright.enable-scan=True
media.stagefright.enable-http=True
debug.sf.hw=1
pm.sleep_mode=1
ro.media.enc.jpeg.quality=100
dalvik.vm.execution-mode=Int:fast
ro.media.dec.jpeg.memcap=8000000
ro.media.enc.hprof.vid.bps=8000000
persist.adb.notify=0
ro.HOME_APP_ADJ=1
ro.service.swiqi.supported=true
persist.service.swiqi.enable=1
windowsmgr.max_events_per_sec=500
ro.max.fling_velocity=12000
ro.min.fling_velocity=8000
dalvik.vm.dexopt-flags=m=v,o=y
kalau sudah pastikan semua tercopy, pilih save dan pilih "y" di Uberizer... Selesai lalu Tutup Uberizer dan Reboot si GIE..

Semoga Berguna emoticon-Toast
