[FONT="Courier New"]//==========LONENLY PAKMAN=======

// by : [email]ahocool@gmail.com[/email]

// [url]http://aisi555.blogspot.com[/url]

//=========== 2012 ===============

#define F_CPU 20000000UL //xtal yg digunakan

#include <avr/io.h>

#include <util/delay.h>

#include <avr/interrupt.h>

#include <avr/pgmspace.h>



#define HSYNC PORTB=0; //H sinkronisasi

#define BLACK PORTB=1; // warna hitem

//deklarasi variable

uint8_t textnya,pakline,arah;

static uint16_t x,y,tick;[/FONT]

[FONT="Courier New"]char pakman1[12] = // memory penyimapan data gambar pakman



 { //kanan mangap

 0b00000000,

 0b01111100,

 0b11001100,

 0b11001000,

 0b11110000,

 0b11100000,

 0b11000000,

 0b11100000,

 0b11110000,

 0b11111000,

 0b01111100,

 0b00000000,

 };





char pakman2[12] =

 { //kanan mingkem

 0b00000000,

 0b01111100,

 0b11001110,

 0b11001110,

 0b11111110,

 0b11111110,

 0b11111110,

 0b11111110,

 0b11000000,

 0b11111110,

 0b01111100,

 0b00000000,

 };





char pakman3[12] =



 { //kiri mangap

 0b00000000,

 0b01111100,

 0b01100110,

 0b00100110,

 0b00011110,

 0b00001110,

 0b00000110,

 0b00001110,

 0b00011110,

 0b00111110,

 0b01111100,

 0b00000000,

 };





char pakman4[12] =

 { //kiri mingkem

 0b00000000,

 0b00111100,

 0b01100110,

 0b01100110,

 0b01111110,

 0b01111110,

 0b01111110,

 0b01111110,

 0b00000110,

 0b01111110,

 0b00111100,

 0b00000000,

 };





char pakman5[12] =



 { //bawah mangap

 0b00000000,

 0b01111100,

 0b11111110,

 0b11110010,

 0b11110010,

 0b11001110,

 0b11001110,

 0b11000010,

 0b10000010,

 0b10000010,

 0b10000010,

 0b00000000,

 };





char pakman6[12] =

 { //bawah mingkem

 0b00000000,

 0b01111100,

 0b11111110,

 0b11110010,

 0b11110010,

 0b11111110,

 0b10111110,

 0b10111110,

 0b10111110,

 0b10111110,

 0b10111100,

 0b00000000,

 };



char pakman7[12] =



 { //atas mangap

 0b00000000,

 0b10000010,

 0b10000110,

 0b10000110,

 0b10000110,

 0b11011110,

 0b10110010,

 0b11110010,

 0b11111110,

 0b01111100,

 0b00000000,

 };





char pakman8[12] =

 { //atas mingkem

 0b00000000,

 0b10111100,

 0b10111110,

 0b10111110,

 0b10111110,

 0b10111110,

 0b11110010,

 0b11110010,

 0b11111110,

 0b01111100,

 0b00000000,

 };

[/FONT]

[FONT="Courier New"]void timer_init(void){

//inisialisasi timer per rasterline 64us (PAL TV)

 TCCR1B |= (1<<WGM12);

 TIMSK |= (1<<OCIE1A);

 OCR1A = 1280; //64 us dengan xtal 20Mhz, untuk 16Mhz= 1024;

 TCCR1B |= (1<<CS10); //full speed[/FONT]

}

[/FONT]

[FONT="Courier New"]

ISR (TIMER1_COMPA_vect) {

 static uint16_t rasterline=0; //baris

 uint16_t a;

 uint8_t out=0; // variabel simpan memory byte pakman



 HSYNC;



//posisi berdasarkan nilai x,y dengan lebar 12 baris

 if( rasterline > (18 + y) && rasterline <= (30 +y) ) {

 _delay_us(4);

 BLACK;

 _delay_us(7);

 for(a=0;a<x;a++) asm("nop");

 // tampilkan sesuai arah dari pakman

 if(arah==0){

 if(tick<5000)out= pakman1[pakline];

 else out= pakman2[pakline];

 }

 else if(arah==1){

 if(tick<5000)out= pakman3[pakline];

 else out= pakman4[pakline];

 }

 if(arah==2){

 if(tick<5000)out= pakman5[pakline];

 else out= pakman6[pakline];

 }

 if(arah==3){

 if(tick<5000)out= pakman7[pakline];

 else out= pakman8[pakline];

 }

//geser bit untuk tampilkan data gambar ke pakman ke TV

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;

 out <<=1;

 PORTB= (out & 0x81) + 1;





 pakline++; //tambahkan index array dari gambar pakman





 }



 // Vsync ada disini tanpa membedakan genap ganjil

 else if( rasterline >= 0 && rasterline < 5 ) {

 _delay_us(27);

 BLACK;

 _delay_us(5);

 HSYNC;

 _delay_us(27);

 BLACK;

 } else if( (rasterline >= 5 && rasterline <= 10) ) {

 _delay_us(2);

 BLACK;

 _delay_us(28);

 HSYNC;

 _delay_us(2);

 BLACK;

 } else if( rasterline >S E N S O R-6 ) {

 _delay_us(2);

 BLACK;

 _delay_us(28);

 HSYNC;

 _delay_us(2);

 BLACK;

 } else {

 _delay_us(3);

 BLACK;

 pakline=0;

 }



 rasterline++;

 tick++; //variabel timer untuk mangap & mingkem

 if(tick >10000) tick=0;





 if( rasterline > 311 )rasterline = 0; //maksimum baris/raster



}[/FONT]

[FONT="Courier New"]

void tombol(void) // membaca tombol

{

if(bit_is_clear(PIND, PIND3))

{x--;

arah=1;

if(x<1)x=125;

_delay_ms(50);

}



else if(bit_is_clear(PIND, PIND4))

{

x++;

arah=0;

if(x>125)x=1;

_delay_ms(50);

}



else if(bit_is_clear(PIND, PIND5))

{y-=3;

arah=3;

if(y<3)y=280;

_delay_ms(50);

}



else if(bit_is_clear(PIND, PIND6))



{y+=3;

arah=2;

if(y>280)y=0;

_delay_ms(50);

}



} [/FONT]

[FONT="Courier New"]

int main() { //Main Program

x=1;

y=13;

arah=0;

 DDRD &=~(1<<PD3) & ~(1<<PD4) & ~(1<<PD5) & ~(1<<PD6); //tombol

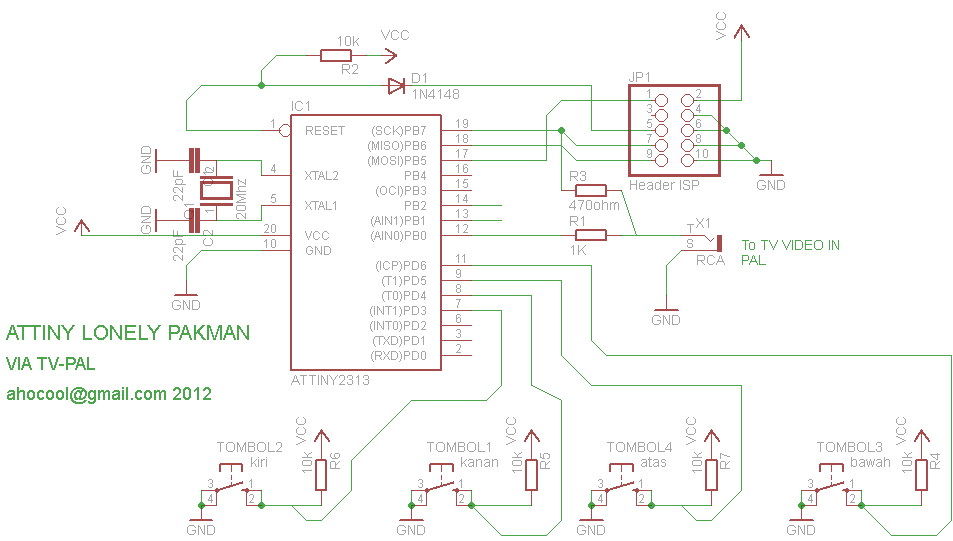

 DDRB = (1<<PB7)|(1<<PB0); //PB0=1K, PB7=470 ohm



 timer_init();

 sei();



 for( ;; )tombol();



}[/FONT]
