Thread ini dibuat untuk memperkenalkan kepada kaskuser mengenai mechanical keyboard, selain itu menjadi sarang buat ngumpul-ngumpul para pengguna mech keyboard. Next, kalo ada yang mau nanya2 soal apa mech keyboard yang cocok buat mereka, bisa di sini :D What is a mechanical keyboard ? A mechanical keyboard is a keyboard built with high quality, typically spring activated, key switches. These key

TS HendyZone

Kaskus Maniac

Lapor Hansip

13-01-2014 23:41

Mechanical Keyboard Lounge - Enjoy Your Typing!

Quote:What is a mechanical keyboard ?

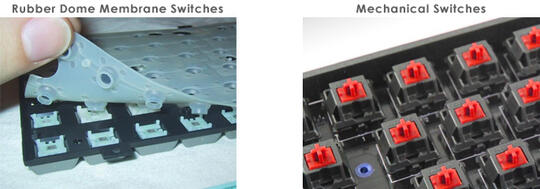

A mechanical keyboard is a keyboard built with high quality, typically spring activated, key switches. These key switches vary based on the keyboard’s application or user preference.
Mechanical keyboards raise the bar in every way. A mechanical keyboard’s switches, framing, functionality, type print methods, key construction, PCB board, LED lighting (sharpness, brightness, adjustability), and a slew of other features are far superior compared to traditional rubber dome keyboards. Most of these improvements boil down to one thing - feel.
Mechanical keyboards simply feel better than rubber dome keyboards.

Source : mechanicalkeyboards.com

Quote:What's the difference between the switches ?

Quote:Cherry MX Black Switches

Cherry MX Black
Type : Linear Switch
Link : Datasheet
Tactile : No
Clicky : No
Actuation Force : 60g (40g-80g overall) (Force Diagram)
Key Travel : 2mm to actuation, 4mm to bottom
Cherry MX-Black switches are linear (non-tactile) switches, these are considered one of the best switch types for gaming. When gaming, having a tactile bump does absolutely nothing because you're going to be bottoming out anyway. So these give you a very smooth feel. The actuation and release points are at the exact same position as well. So games that require a lot of double tapping become easier than on any other keyswitch. However, most people don't enjoy typing on them that much do in part, to their linear nature.
If you're a person who tends to hit a wrong key every so often while gaming, these will be beneficial in that the high actuation force will help prevent many of those accidental presses.
Cherry MX Brown Switches

Cherry MX Brown
Type : Tactile Switch
Link : Datasheet
Tactile : Yes
Clicky : No
Actuation Force : 45g (55g Peak Force) (Force Diagram)
Key Travel : 2mm to actuation, 4mm to bottom
Cherry MX Brown switches are considered a middle ground between typing and "gaming" switches. They have a light, tactile feel half way through the key press that lets you know the switch has activated. This gives you an indication of what you can release the switch. The switch is considered a middle ground because the reset point & actuation point are close enough together than you can "float" at that point, enabling you to double tap faster.

As a note: this switch actually has a peak force of 55G, it is 45G at the point of actuation. This is due to the design of the Cherry switch itself.
Cherry MX Blue Switches

Cherry MX Blue
Type : Tactile & Clicky Switch
Link : Datasheet
Tactile : Yes, precise
Clicky : Yes
Actuation Force : 50g (60g Peak Force) (Force Diagram)
Key Travel : 2mm to actuation, 4mm to bottom
Cherry MX Blue switches are the best cherry switch for typing. The tactile bump can easily be felt, and the resistance is similar to your average keyboard.

Although many people find them just fine for gaming, some don't like the fact that the release point is above the actuation point. This can cause some trouble with double-tapping. This is usually the case with someone who has experienced other mechanical switches before hand.

As a note: this switch actually has a peak force of 60g, it is 50g at the point of actuation. This is due to the design of the Cherry switch itself.
Cherry MX Red Switches

Cherry MX Red
Type : Linear Switch
Link : Datasheet
Tactile : No
Clicky : No
Actuation Force : 45g (Force Diagram)
Key Travel : 2mm to actuation, 4mm to bottom
Cherry MX-Red's are another switch that can be considered a "gaming" switch. It's essentially a lighter version of the MX Black, requiring less force to actuate. Some people do not find this switch that good for typing or gaming because it is so light, but others rave for this fact. Light or Stiff is always a matter of preference. This switch was hard to find; and was reported as EOL, but it is still in limited production with a higher than average MOQ leading to higher cost to board makers. Marketed with high demand, boards with this switch are becoming more common, but are generally more expensive as well.
Cherry MX Clear Switches

Cherry MX Clear
Type : Tactile Switch
Link : Datasheet
Tactile : Yes
Clicky : No
Actuation Force : 55g (65G peak force) (Force Diagram)
Key Travel : 2mm to actuation, 4mm to bottom
Cherry MX Clear switches have often been called "stiffer browns" though some users note that they have more of a tactile feel than browns do. This really can be a subjective topic, though this is another switch that could be considered "ballanced." The force required is comparable to most rubber dome keyboards, with a nice tactile feedback to tell you the key has actuated. These switches are harder to find on keyboards.

As a note: this switch actually has a peak force of 65g, it is 55g at the point of actuation. This is due to the design of the Cherry switch itself.
Buckling Spring Switches

Buckling Spring
Type : Tactile & Clicky Mechanical Switch
Link : Patent
Tactile : Yes, very precise
Clicky : Yes, loud
Actuation Force : 65g-70g (Force Diagram)
Key Travel : 2.3mm to actuation, 3.7mm to bottom
Buckling springs are pretty straightforward once you see them in action. After pushing the key down a certain distance the spring buckles under pressure, causing the hammer at the bottom to hit a membrane sheet and create an electrical contact. The buckling of the spring also provides tactile feedback and a satisfying click as it hits the shaft wall. And you might also notice through the force diagrams that this is the only mechanical switch where the tactile and audible feedback correspond to the exact moment the switch actuates.
White Alps Switches

White Alps
Type : Clicky & Tactile Mechanical Switch
Tactile : Yes
Clicky : Yes
Actuation Force : 60g-70g (Force Diagram)
Key Travel : 3.5mm
White Alps are one of the most common Alps switch types. These are far more popular than the Black switches due to more pronounced tactility, and the lower force requirements of some versions. Like the Black Alps, White Alps are much easier to bottom out on compared with other mechanical keyswitch designs.

There are also a variety of White Alps-like switches of varying quality. Some, like the SMK Monterey, are considered very pleasant to type on..
Topre Switches

Topre
Type : Tactile Capacitive Switch
Link : Patent
Tactile : Yes
Clicky : No
Actuation Force : 30g, 35g, 45g, 55g depending on model (Force Diagram)
Key Travel : 4mm
Topre switches are somewhat of a hybrid switch, and are capacitive by nature. The Topre mechanism uses a spring underneath a rubber dome, and the depression of the spring causes a change in capacitance between the underlying capacitor pads. With this change in capacitance; the switch activates.

Topre Switches are considered some of the finest switches available, as they offer a very enjoyable typing experience with a quieter experience compared to a Cherry MX, Alps, or Buckling Spring switch. The reason is Topre switches have the smoothest force gradient even compared to Linear switches like MX-Reds and MX-Blacks.

Quote:Our Facebook Group :

Diubah oleh HendyZone 14-01-2014 14:44

Tampilkan isi Thread

Thread sudah digembok

Hardware Computer

5.3K Anggota • 30.1K Threads

Komentar Terlama

Halaman 454 dari 501

Mechanical Keyboard Lounge - Enjoy Your Typing!

Death.Dead.Die

Kaskus Addict

#9061

Lapor Hansip

15-03-2016 09:02

Quote:Original Posted By HendyZone ►

poseidon z pakai kailh switch
saya pribadi kurang suka
dengan budget segitu dengan keperluan fullsize
ambil Ducky ONE Non-Backlit 990rb emoticon-Wink

Quote:Original Posted By rullyrullzzz ►

Yah gan, sayang bener niat ngambil TTeSport Poseidon. Masih pake Kailh pula dengan harga 800 ribu.
Mending langsung Ducky aja, ada yang Ducky One non-LED TKL 890 ribu atau Ducky One non-LED fullsize 990 ribu, soale udah pakai Cherry MX asli.

Ane udah jajal tu Ducky One, waktu main ke Mangga Dua. Enak dan cocok lah buat entry level.

wah masih masuk budged emoticon-Wowcantik

ane belum liat sih ducky yang fullsize harga dibawah sejuta
coba ane searching dulu emoticon-Ngacir

EDITED
ane barusan nyari di mechanicalkeyboard.co.id
ternyata yang punya... ah sudahlah emoticon-Ngakak (S)

ntar ye gan pas gajian, nggak ada voucher diskon gan? emoticon-Betty (S)

Diubah oleh Death.Dead.Die 15-03-2016 09:26

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

onnymaru

Kaskus Addict

#9062

Lapor Hansip

15-03-2016 10:59

izn gabung gan...
kemarenan baru nebus Durandal G1NL red switch..

mau tanya2 nih,
ini selain caps-nya, switchnya bisa diganti2 ga sih.?

kalau caps-nya, harus milih yang gimana gan.?
biar tembus LED nya..

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

Arisato95

Aktivis Kaskus

#9063

Lapor Hansip

15-03-2016 11:04

Halo semuanya, maaf kalau oot, bagaimana ya cara yg recommended untuk repaint anodized aluminium? keyboard saya kena komponen metal dan ada yg rontok emoticon-Frown

thanks sebelumnya

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

TS HendyZone

Kaskus Maniac

#9064

Lapor Hansip

15-03-2016 11:05

Quote:Original Posted By Death.Dead.Die ►

wah masih masuk budged emoticon-Wowcantik

ane belum liat sih ducky yang fullsize harga dibawah sejuta
coba ane searching dulu emoticon-Ngacir

EDITED
ane barusan nyari di mechanicalkeyboard.co.id
ternyata yang punya... ah sudahlah emoticon-Ngakak (S)

ntar ye gan pas gajian, nggak ada voucher diskon gan? emoticon-Betty (S)

kalo register otomatis dapet voucher 20k tuh bro emoticon-Belo

Quote:Original Posted By onnymaru ►

switch bisa diganti, mainan ama solder bro emoticon-Big Grin

untuk pilih keycap yang tembus backlit yang model seperti ini

rata2 bahan nya ABS printing laser etched

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

TS HendyZone

Kaskus Maniac

#9065

Lapor Hansip

15-03-2016 11:07

Quote:Original Posted By Arisato95 ►
Halo semuanya, maaf kalau oot, bagaimana ya cara yg recommended untuk repaint anodized aluminium? keyboard saya kena komponen metal dan ada yg rontok emoticon-Frown

thanks sebelumnya

liat dari keyboardnya sekilas
seperti das keyboard

itu bahannya plastik bro, jadi bukan anodized istilahnya
tapi cukup di repaint aja bro

bisa bawa ke tukang motor/mobil aja bro yang biasa ngecat
pasti ahli soal begituan mereka emoticon-Add Friend (S)

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

Arisato95

Aktivis Kaskus

#9066

Lapor Hansip

15-03-2016 11:11

Quote:Original Posted By HendyZone ►
liat dari keyboardnya sekilas
seperti das keyboard

itu bahannya plastik bro, jadi bukan anodized istilahnya
tapi cukup di repaint aja bro

bisa bawa ke tukang motor/mobil aja bro yang biasa ngecat
pasti ahli soal begituan mereka emoticon-Add Friend (S)

Iya itu das keyboard gan. Hmm saya liat websitenya ditulis anodized aluminum sih; atau yg agan maksud coatingnya?

Saya mau berusaha DIY dulu gan soalnya tukang cat di daerah saya mahal hahaha

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

ezrahizovic

Kaskus Maniac

#9067

Lapor Hansip

15-03-2016 11:13

ijin gabung gan..duh baru tau ternyata ada trit komunitas keyboard meka dimari --"

kmrn ane naksir corsair k70..trus nafsu bgt tp bujet terbatas..di gerai corsair di STCnya 2,7

akhirnya ambil second di 2,1 eh pas diliat ternyata garansinya cm sampai 11/2016..ane rugi ga sih gan?

buat ke depannya ane ijin mantengin trit ini yaaa suhu2..

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

onnymaru

Kaskus Addict

#9068

Lapor Hansip

15-03-2016 11:15

Quote:Original Posted By HendyZone►

switch bisa diganti, mainan ama solder bro emoticon-Big Grin

untuk pilih keycap yang tembus backlit yang model seperti ini

ABS Laser Etched, noted bro..

ini lagi liat2 di mechanicalkeyboard.co.id

tanya lagi, untuk profil2 itu, yang masuk ke cherry, profile apa aja ya..??

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

TS HendyZone

Kaskus Maniac

#9069

Lapor Hansip

15-03-2016 11:48

Quote:Original Posted By Arisato95 ►

Iya itu das keyboard gan. Hmm saya liat websitenya ditulis anodized aluminum sih; atau yg agan maksud coatingnya?

Saya mau berusaha DIY dulu gan soalnya tukang cat di daerah saya mahal hahaha

ouh das keyboard 4 yak ?
kalo yang 4 top panel nya anodized alu; agak susah nih emoticon-Ngakak (S)

harus cari orang yang terima jasa anodized kalo gitu bro

Quote:Original Posted By ezrahizovic ►
ijin gabung gan..duh baru tau ternyata ada trit komunitas keyboard meka dimari --"

kmrn ane naksir corsair k70..trus nafsu bgt tp bujet terbatas..di gerai corsair di STCnya 2,7

akhirnya ambil second di 2,1 eh pas diliat ternyata garansinya cm sampai 11/2016..ane rugi ga sih gan?

buat ke depannya ane ijin mantengin trit ini yaaa suhu2..

welcome to the club bro emoticon-Add Friend (S)

Garansi Corsair DTG 2 tahun sih bro emoticon-Big Grin

silahkan bro emoticon-Ngacir

Quote:Original Posted By onnymaru ►

ABS Laser Etched, noted bro..

ini lagi liat2 di mechanicalkeyboard.co.id

tanya lagi, untuk profil2 itu, yang masuk ke cherry, profile apa aja ya..??

Profile di keycap itu mksdnya ketinggian nya bro
selama stem nya cherry bisa dipasang di tesoro nya
Cherry Profile sedikit lebih pendek dibanding OEM Profile

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

elvesman

Kaskus Addict

#9070

Lapor Hansip

15-03-2016 12:00

permisi agan2 ,ane tertarik nih mau beli mecha keyboard ,selama ini cuma pakai keyboard bawaan laptop
kalau menurut agan2 disini kira2 saya ambil Corsair K70 RGB , Ducky Shine 5 atau CM Masterkeys ya?
bingung soalnya, harganya beda2 tipis juga..
Terima kasih sebelumnya emoticon-Cendol (S)

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

onnymaru

Kaskus Addict

#9071

Lapor Hansip

15-03-2016 12:13

Quote:Original Posted By HendyZone►

Profile di keycap itu mksdnya ketinggian nya bro
selama stem nya cherry bisa dipasang di tesoro nya
Cherry Profile sedikit lebih pendek dibanding OEM Profile

ouh gituu...

ane dah belanja tuh di web, a/n Bp. H****i
asal pilih aja sih keycapsnya, profile-nya acakadut kayanya ntar...

btw, di web ga jual key caps khusus WASD, ALT, SHIFT ya.?

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

riodsa123

Kaskus Maniac

#9072

Lapor Hansip

15-03-2016 13:04

Quote:Original Posted By No_Jutsu^^ ►
Di sini ada yg beli promo logitech g810 di bhinneka?

ane udah beli sih, cuma dari hari sabtu sampe sekarang blom dikirim kirim barangnya.
Kenapa emangnya gan?

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

kavkawasdie

PC Game Enthusiast

#9073

Lapor Hansip

15-03-2016 14:54

Misi ye gan newbie mau tanya nih emoticon-Embarrassment

Di pageone gak ada penjelasan dan perbedaan macem2 jenis keycaps, apa ada yang bisa kasih tau singkat aja model dan plus minusnya apa?
Dan kalo boleh tau k70 rgb itu jenis keycapsnya apa? Soalnya cuman punya ini dirumah hehe
Oiya, di belakang k70 itu khan ada switch, baca di manual itu semacem polling rate. Nah gunanya di keyboard ini apa ya? Apa sama kaya polling rate di mouse?

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

No_Jutsu^^

Kaskus Addict

#9074

Lapor Hansip

15-03-2016 15:20

Quote:Original Posted By riodsa123 ►

ane udah beli sih, cuma dari hari sabtu sampe sekarang blom dikirim kirim barangnya.
Kenapa emangnya gan?

ga sih mau ngabarin bagi anak2 sini sapa tau ada yg minat sama promo nya bhinneka kan mayan beli keyboard free mouse. kalau ga suka maouse nya bisa di jual hemat 1 jutaan hahaha. kira2 dapat bundle division logitech ga ya? yg us dapat loh... hari sabtu beli. belon dikirim? ga tanya kapan di kirim bro?

zharki memberi reputasi

1 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

JanKlasHuntelar

Kaskus Maniac

#9075

Lapor Hansip

15-03-2016 15:34

Quote:Original Posted By No_Jutsu^^ ►

ga sih mau ngabarin bagi anak2 sini sapa tau ada yg minat sama promo nya bhinneka kan mayan beli keyboard free mouse. kalau ga suka maouse nya bisa di jual hemat 1 jutaan hahaha. kira2 dapat bundle division logitech ga ya? yg us dapat loh... hari sabtu beli. belon dikirim? ga tanya kapan di kirim bro?

gua juga beli bundle dari bhinneka udah konfirmasi klo logitech indonesia ga ada promo free division itu cuman US only aja << tetangga nya us aja ga dpt kayak canada dan sekitarnya gimana kita yang di indonesia?

gua beli hari minggu pagi juga sekarang blom d kirim gua da coba nanya ke bhinneka katanya barangnya blom di kirim dari distributornya ekspetasi pengirimannya day 3-4 berarti yang pesen hari sabtu minggu senen kira2 d kirim hari rabu or kamis

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

No_Jutsu^^

Kaskus Addict

#9076

Lapor Hansip

15-03-2016 15:37

Quote:Original Posted By JanKlasHuntelar ►

gua juga beli bundle dari bhinneka udah konfirmasi klo logitech indonesia ga ada promo free division itu cuman US only aja << tetangga nya us aja ga dpt kayak canada dan sekitarnya gimana kita yang di indonesia?

gua beli hari minggu pagi juga sekarang blom d kirim gua da coba nanya ke bhinneka katanya barangnya blom di kirim dari distributornya ekspetasi pengirimannya day 3-4 berarti yang pesen hari sabtu minggu senen kira2 d kirim hari rabu or kamis

mantap gan thanks untuk konfirmasi nya emoticon-Smilie

zharki memberi reputasi

1 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

Arisato95

Aktivis Kaskus

#9077

Lapor Hansip

15-03-2016 16:23

Quote:Original Posted By HendyZone ►

ouh das keyboard 4 yak ?
kalo yang 4 top panel nya anodized alu; agak susah nih emoticon-Ngakak (S)

harus cari orang yang terima jasa anodized kalo gitu bro
Iya das 4. Wah udah no hope buat DIY nih tampaknya emoticon-Frown

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

riodsa123

Kaskus Maniac

#9078

Lapor Hansip

15-03-2016 19:13

Quote:Original Posted By JanKlasHuntelar ►

gua juga beli bundle dari bhinneka udah konfirmasi klo logitech indonesia ga ada promo free division itu cuman US only aja << tetangga nya us aja ga dpt kayak canada dan sekitarnya gimana kita yang di indonesia?

gua beli hari minggu pagi juga sekarang blom d kirim gua da coba nanya ke bhinneka katanya barangnya blom di kirim dari distributornya ekspetasi pengirimannya day 3-4 berarti yang pesen hari sabtu minggu senen kira2 d kirim hari rabu or kamis

update, udah dikirim G810
palingan besok atau lusa sampe, udah gk sabar emoticon-Big Grin

sekalian ngetest pake Mecha Keyboard

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

JanKlasHuntelar

Kaskus Maniac

#9079

Lapor Hansip

15-03-2016 19:52

Quote:Original Posted By riodsa123 ►

update, udah dikirim G810
palingan besok atau lusa sampe, udah gk sabar emoticon-Big Grin

sekalian ngetest pake Mecha Keyboard

hahah udah d update yaa iya d kirim via tiki reguler duh mudah2an besok sampeee

0 0

Mechanical Keyboard Lounge - Enjoy Your Typing!

No_Jutsu^^

Kaskus Addict

#9080

Lapor Hansip

15-03-2016 20:56

Quote:Original Posted By JanKlasHuntelar ►

hahah udah d update yaa iya d kirim via tiki reguler duh mudah2an besok sampeee

jakarta ya? hahaha. kalau gua mungkin besok lusa....

zharki memberi reputasi

1 0

Halaman 454 dari 501
